Posted: October 30, 2011

Introduction

Just in time for halloween, here is a simple circuit that PWM's 6 colored LEDs with an msp430g2231 microcontroller. When the circuit is sitting inside a carved pumpkin it can take the place of a candle. The source code below can be assembled with naken430asm.

Video

Pictures

	Here's the pumpkin glowing colors :).

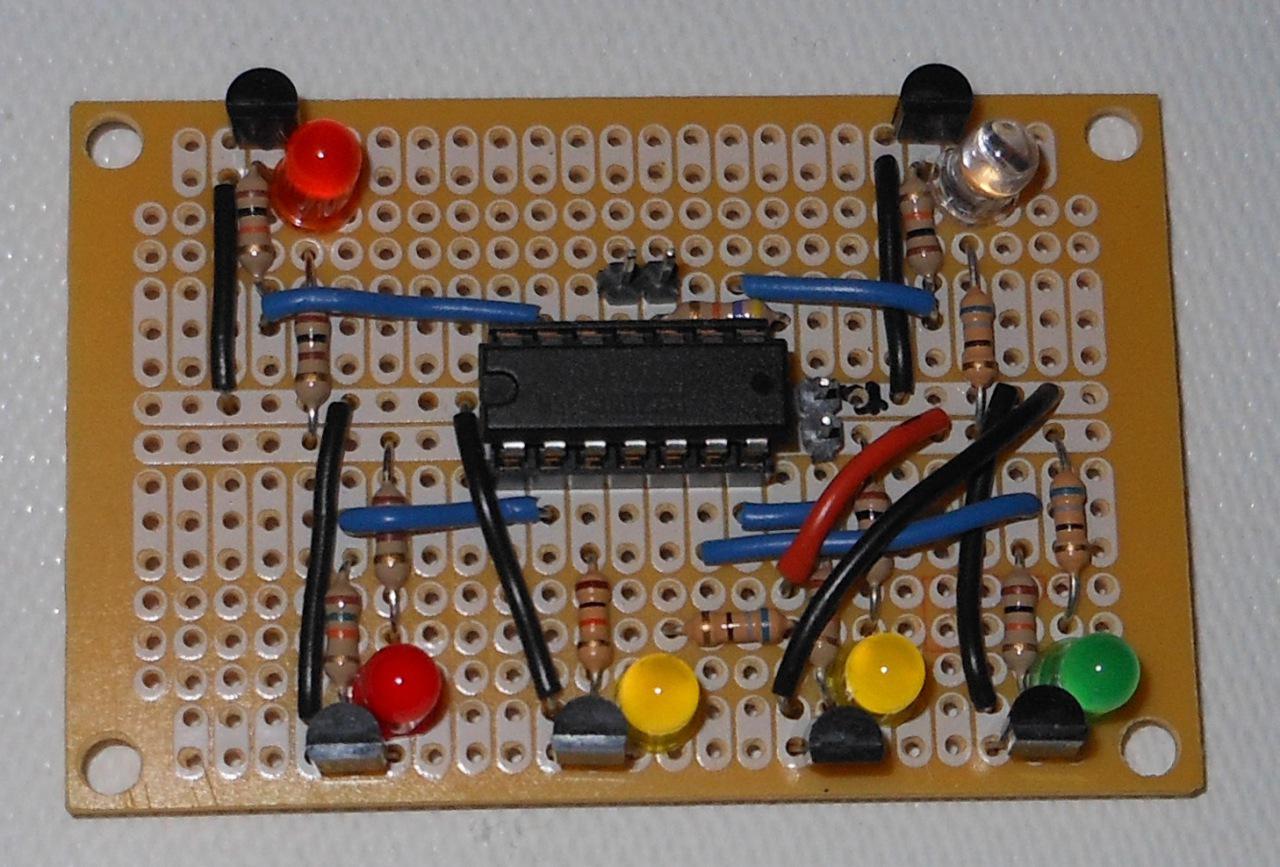

	Here's the circuit board.

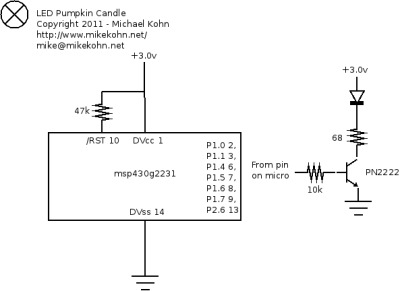

	And here's the schematic...

Source code
led_pumpkin_candle.asm
